2022 SCAG SPZ52H-22FX

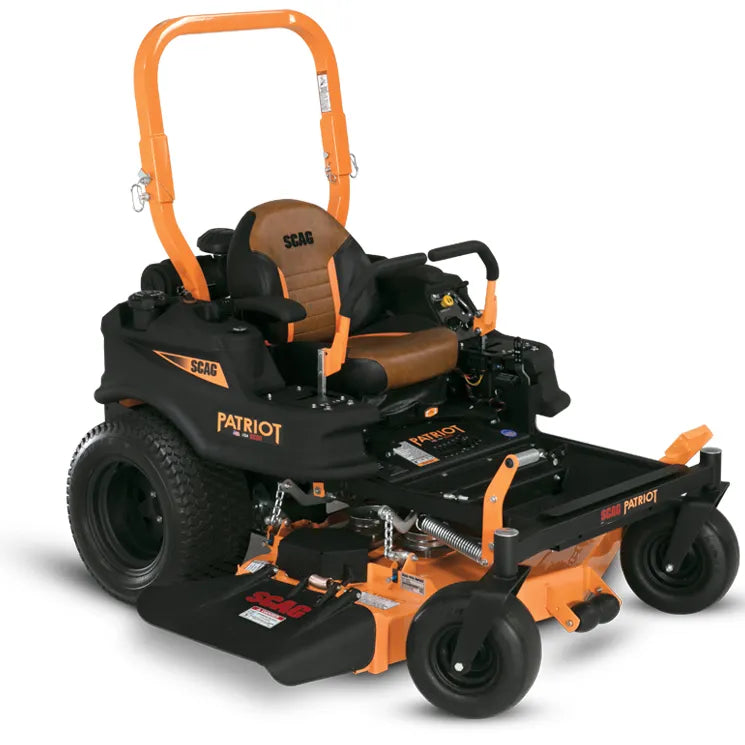

2022 SCAG Power Equipment Patriot SPZ52H-22FX

52" Hero Cutter Deck, 22 HP Kawasaki®FX691

Features may include:

Hero™ Cutter Deck

DEEP, FABRICATED, AND WELDED CUTTER DECKS

• Heavy-duty Hero Cutter Deck design and construction yield an excellent quality-of-cut. Deep design handles lots of grass at higher speeds. Heavy-duty, aluminum, sealed ball bearing, blade-drive spindles provide reliable performance season after season.

Ogura PTO Clutch Brake

STRONG, ADJUSTABLE CLUTCH FOR LONG LIFE

• The Ogura GT2 PTO Clutch Brake provides excellent starting and stopping power for the cutter deck, 108 ft. lb. of holding strength, and an adjustable air gap for long life.

High-Strength Steel Frame

SOLID DESIGN FOR YEARS OF DEPENDABLE SERVICE

• Tubular-steel main frame delivers unmatched strength and longevity.

Hydro-Gear ZT-3100 / ZT-3400 Transaxles

SPEEDS UP TO 10 MPH (SPZ61) / 8.5 MPH (SPZ52)

• The ZT drive systems’ dual hydro transaxles with all-metal gears and spin-on oil filters deliver smooth, solid power to the drive wheels. Large cooling fans keep temperatures low and extend component life.

Low-Maintenance Mower Design

MORE UPTIME

• Fewer grease points increase operator convenience and ease-of-ownership.

Suspension Seat

RIDE IN COMFORT

• The torsion-spring suspension seat adjusts to each operator’s weight, is contoured and features armrests, all to provide superior comfort.

Iso-Mounted Footplate

CRANK UP THE COMFORT

• Pierced, extruded-steel footplate is rubber iso-mounted for enhanced comfort.

Foot-Pedal Parking Brake

STAY IN CONTROL

• Foot-operated parking brake activates a disc-brake system, allowing the parking brake to be engaged without taking your hands off of the steering controls. Ausco disc brakes provide reliable performance.

Powerful and Efficient Engine Options

RELIABLE POWER, UP TO 26 HP

• Choose from a Briggs Vanguard™, Kawasaki® FX or a Kohler® Command PRO® air-cooled, V-twin engine.

Specification:

2022 SCAG Power Equipment Patriot SPZ52H-22FXYear2022ManufacturerSCAG Power Equipment Model Name Patriot Trim NameSPZ52H-22FXGeneric Type (Primary)Zero-Turn MowerEngineKawasaki® FX691Engine Power22 HP Drivetrain Drive System Hydro-Gear ZT3100 Transaxle Brakes Parking Brake Foot-operated pedal Wheels & TiresWheels22" x 10.5"-12" | Caster tires: 13" x 6.5"-6"OperationalTop SpeedForward: 8.5 mph | Reverse: 5 mph Hydraulics Pump TypeZT3100 Internal Pump: 10 cc Motor Type Internal Motor: 16 ccDimensionsLength73"WidthChute Down: 64.5" | Chute in transport position: 53"HeightROPS folded: 46.5" | ROPS up: 61" | Cutting: 1.5" to 5" in .25" increment s Cutting Width52"CapacitiesFuel Capacity6.5 gallonsWeightsWeight907-911 lb Features Deck: Hero Cutter Deck | Deck Lift: Foot-operated pedal | Deck Construction: Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles .Seat Type Torsion-spring suspension seat Spindle Type Aluminum housing with sealed ball bearings.

Location Nashville, Tennessee

• Condition New
• Stock Number0010947
• Year2022
• Make SCAG Power Equipment
• Model Patriot SPZ52H-22FX
• VINS6800797
• Engine Kawasaki® FX691
• Horsepower22.00
• Engine Hours0.10
• Fuel TypeGas
• Status Available
• Width Chute Down: 64.5" | Chute in transport position: 53"
